working principle
The bio organic fertilizer turning machine is used to ferment pollutants
such as stored feces, agricultural waste, sugar factory filter sludge, sludge,
and household waste through aerobic fermentation
The principle is to produce green and environmentally friendly bio organic
fertilizers that improve soil quality. Can achieve one day of heating, 3-5 days
of deodorization, sterilization (can kill insect eggs and bacteria in feces)
Seven days of natural fertilization, faster and more efficient than using
other mechanical fermentation methods. According to customer requirements, some
auxiliary facilities can also be added, such as self
Microbial spraying device, etc.
Performance Characteristics
The ground stacking fermentation mode is currently a fertilizer production
mode that saves construction and human resources. The materials need to be
stacked into long strip-shaped stacks, and the mobile stacker is used to mix and
crush the materials at regular intervals, and decompose organic matter under
aerobic conditions. The track type flipping machine also has the function of
crushing, greatly saving time and labor, significantly improving the production
efficiency and product quality of organic fertilizer plants, and greatly
reducing costs. The crawler type flipping machine can effectively mix sludge,
viscous chicken manure and other materials with bacterial strains and straw
powder evenly during operation. Created a better aerobic environment for
material fermentation. Not only is it much faster than deep tank fermentation,
but it also effectively prevents the production of harmful and odorous gases
such as hydrogen sulfide, amine gas, indole, etc. during the fermentation
process, which meets environmental protection requirements.
purpose

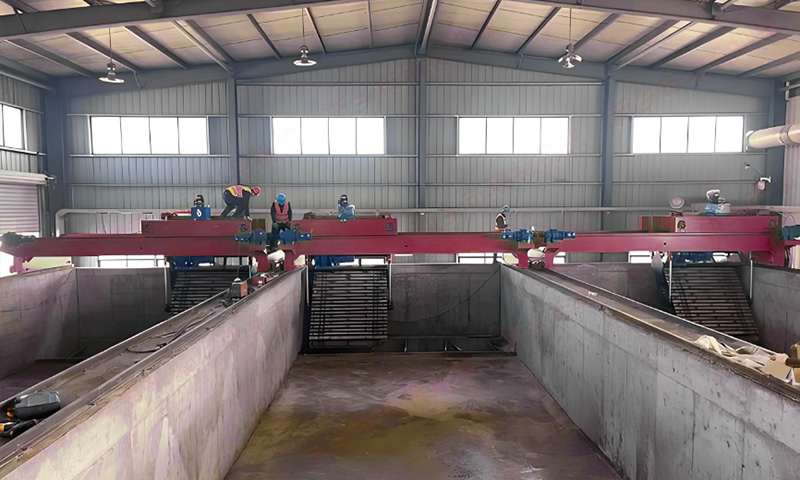

The chain plate composting and flipping machine is suitable for deep tank
aerobic composting of organic solid livestock and poultry breeding waste
resources such as animal manure, sludge, and garbage. The machine travels along
the fermentation tank track for operation, and its rate flipping and throwing
operation is beneficial for accelerating the fermentation and maturation of
materials in the fermentation tank, reducing moisture, and improving compost
quality. The specifications of this machine series can meet various fermentation
tank widths.
feature
1. The pallet structure adopts chain transmission and rolling support, with
low flipping resistance and energy saving, suitable for deep groove
operation.
2. The flipping pallet is equipped with a flexible tensioning and elastic
damping system to protect the transmission system and working components during
operation.
3. The flipping tray is equipped with 390 detachable wear-resistant curved
tooth cutters, which have strong crushing ability and good oxygenation effect on
the material pile.
4. When flipping, the material stays on the pallet for a long time,
disperses at a high position, and comes into full contact with the air, which
can easily reduce moisture.
5. Through horizontal and vertical displacement, flipping and throwing
operations can be achieved at any position within the slot, with flexible
maneuverability.
6. The lifting and lowering of the flipping and throwing working components
are controlled by a hydraulic system, which works flexibly and quickly.
7. The machine can be remotely controlled for tasks such as forward
movement, lateral movement, flipping, and rapid backward movement, improving the
operating environment.
8. Optional equipment includes a trough type raw material feeder, automatic
discharge device, solar fermentation chamber, and ventilation aeration
system.
9. Equipping a transfer machine for slot changing can achieve multi slot
operation of one flipping machine, saving investment.
